Summary

Item Description

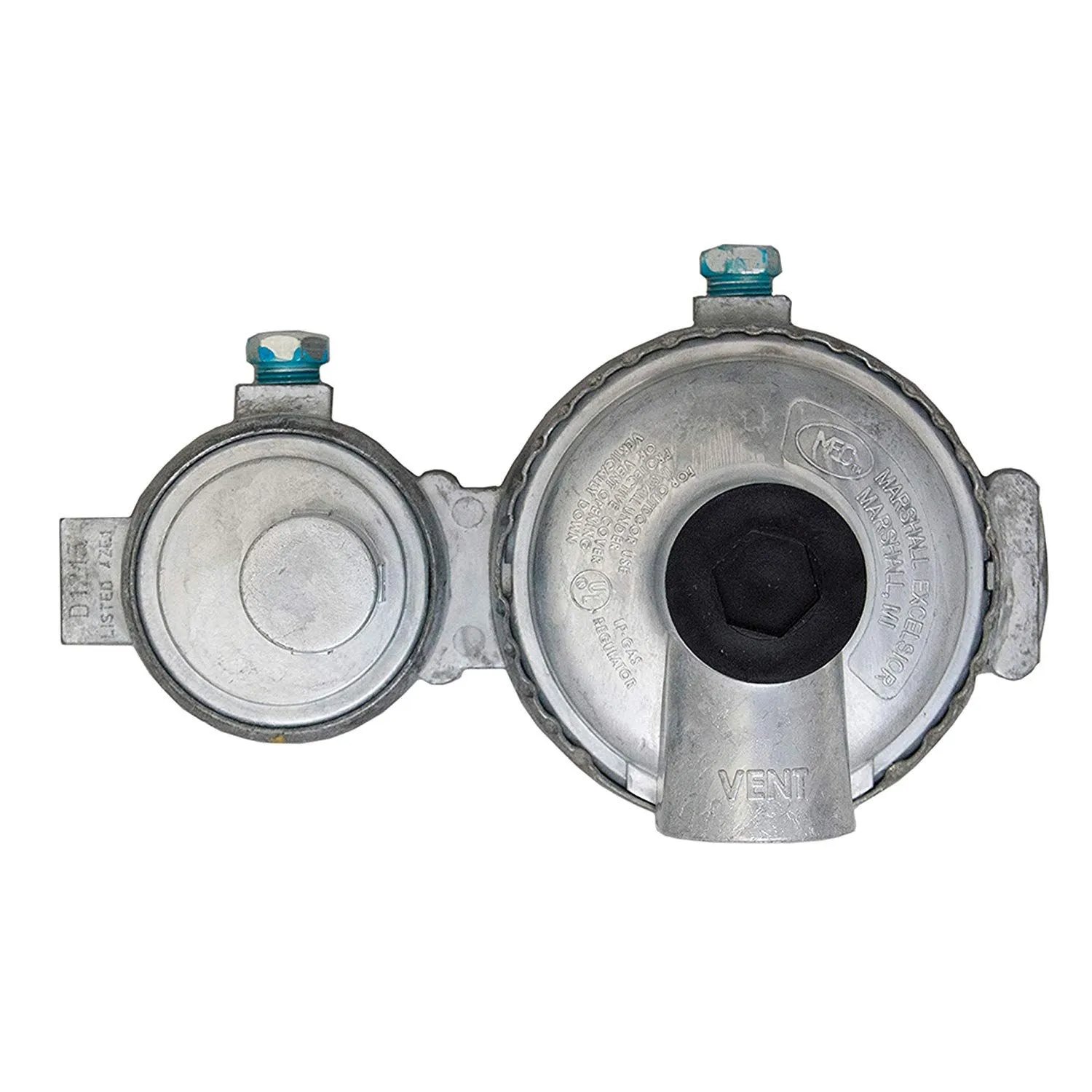

MEGR-298 Compact 2 Stage Regulator 1/4 inch FNPT Inlet x 3/8 inch FNPT Outlet - 90 degree Vent is approved for use in portable applications and outdoor cooking appliances utilizing low pressure. Features an all zinc body construction, high and low 1/8 inch NPT pressure tap ports, an integral drip lip vent. Compact regulator 1/4 inch FNPT Inlet x 3/8 inch FNPT Outlet. 175,000 BTU/H LPG @ 30 PSI Inlet. Max. Inlet Pressure: 250 PSI. Inlet Connection: 1/4 inch FNPT. Outlet Connecection: 3/8 inch FNPT. Exterior Finish: Raw Zinc / Raw Zinc. Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal. Diaphragm Type: Internal Relief - Spring Loaded. Bonnet / Body Material: Die Cast Zinc. Listings: UL LISTED / UL 144. Mounting Holes: 3-1/2 inch On Center. Pressure Taps: 1/8 inch FNPT Plugged. Meets RVIA, UL and NFPA test requirements.

Specifications

There are no specifications listed at this time. Please check again for additional updates in the future

Q & A

There are currently no questions listed for this item.

Related Parts

There are no related items to this item.

Videos

There are no videos listed at this time for this item.

Photos

All images list for this item: (hover over image for larger image)

PDF and Downloads

There are no other PDF files or downloads for this item listed at this time.
