Electrical > Battery Boxes, Disconnects > 7029620

Return to search results

Allied Class Code
BATTERY DISCONNECT INLINE 20188 SP-1

Item # 7029620

Mfg No:	20188
Mfg:	Wirthco

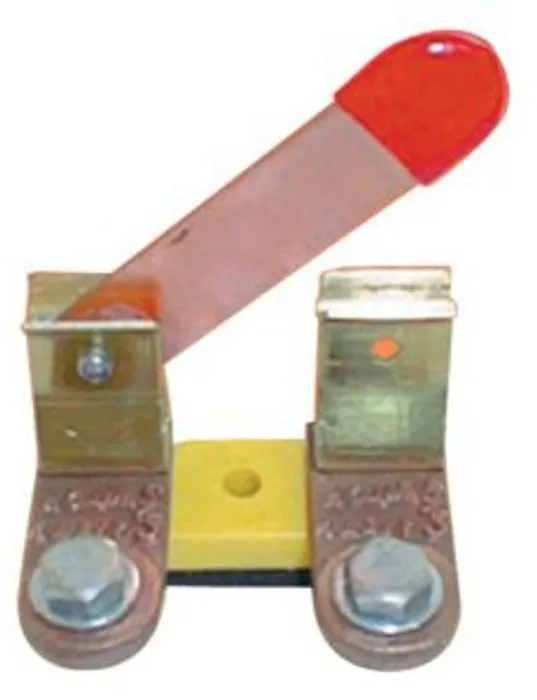

Knife-Switch In-Line Battery Disconnect - This in-line disconnect can be mounted under the hood or in the location of your choice. It does not attach to battery, simply run a new cable to the switch, connect the battery cable to the post on the switch. Should be mounted in a well ventilated area. Capacity is equal to a #1 AWG battery cable; for all voltage systems. Both terminals are 5/16 inch bolts for receiving eyelet cable connectors. Carries 250 Amps continuous and a maximum surge of 750 Amps. Mounting hole is 1/4 inch in diameter. Dimensions: 3 inch W x 4 inch L x 2 inch H. 1 per package.

MSRP: $51.68

Summary

Item Description

20188 Knife-Switch In-Line Battery Disconnect - This in-line disconnect can be mounted under the hood or in the location of your choice. It does not attach to battery, simply run a new cable to the switch, connect the battery cable to the post on the switch. Should be mounted in a well ventilated area. Capacity is equal to a #1 AWG battery cable; for all voltage systems. Both terminals are 5/16 inch bolts for receiving eyelet cable connectors. Carries 250 Amps continuous and a maximum surge of 750 Amps. Mounting hole is 1/4 inch in diameter. Dimensions: 3 inch W x 4 inch L x 2 inch H. 1 per package.

Specifications

There are no specifications listed at this time. Please check again for additional updates in the future

Q & A

There are currently no questions listed for this item.

Videos

There are no videos listed at this time for this item.

Photos

All images list for this item: (hover over image for larger image)

PDF and Downloads

There are no other PDF files or downloads for this item listed at this time.
