PINTLE MOUNT 7 3/4
PINTLE MOUNT 7 3/4[X]
Added Category
PINTLE MOUNT 7 3/4" 63057 43050 55650
Item # 14041104
Mfg No: 63057
Mfg: Drawtite

7-3/4 inch Drop Pintle Mount - Use this to convert your standard receiver to work with pintle-type trailers. It will provide you with a mounting surface for both ball and pintle and rigid-type pintle hooks. (Pin and clip must be ordered separately.) Solid shank measures 2 inches square x 7-5/8 inch long. Attachment plate measures 7-1/2 inch H x 5 inch W and gives you 4 sets of adjustment holes (approx. 1-3/4 inches center to center vertically x 3-3/8 inches center to center horizontally). Hole Diameter: 17/32 inch. Load Capacity: 12,000 lbs GTW / 1200 lbs TW rating.

Summary

Item Description


63057 7-3/4 inch Drop Pintle Mount - Use this to convert your standard receiver to work with pintle-type trailers. It will provide you with a mounting surface for both ball and pintle and rigid-type pintle hooks. (Pin and clip must be ordered separately.) Solid shank measures 2 inches square x 7-5/8 inch long. Attachment plate measures 7-1/2 inch H x 5 inch W and gives you 4 sets of adjustment holes (approx. 1-3/4 inches center to center vertically x 3-3/8 inches center to center horizontally). Hole Diameter: 17/32 inch. Load Capacity: 12,000 lbs GTW / 1200 lbs TW rating.

Specifications

There are no specifications listed at this time. Please check again for additional updates in the future

Q & A

There are currently no questions listed for this item.


Videos

There are no videos listed at this time for this item.

Photos

All images list for this item: (hover over image for larger image)

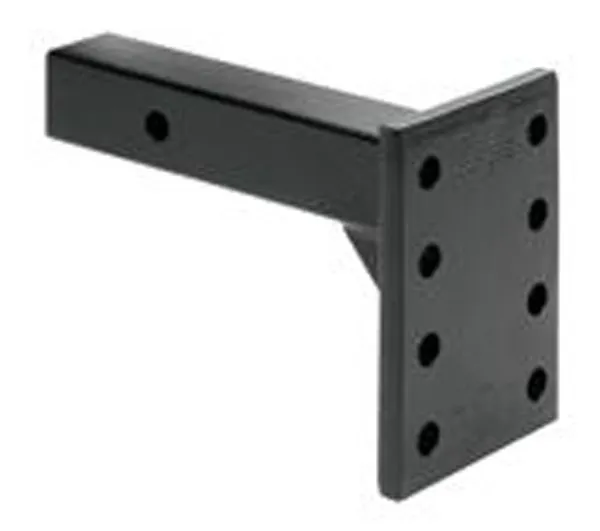

thumbnail image of the product
PINTLE MOUNT 7 3/4

PDF and Downloads

There are no other PDF files or downloads for this item listed at this time.
