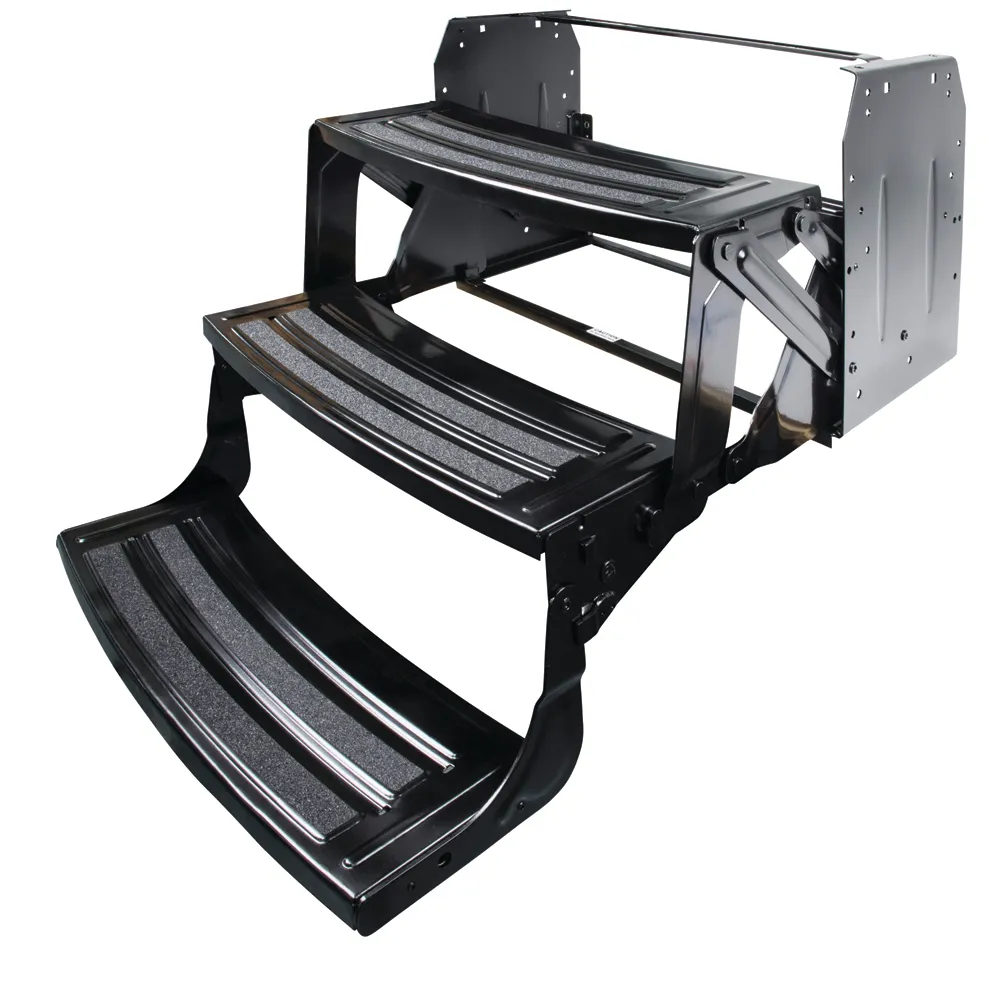

24" Radius Triple 9" Manual Step replaced #341502

Item # 13221318

Mfg No:	432690
Mfg:	Lippert Components

This 8-1/4" deep, triple pull-out RV step opens and closes with just 1 hand. Anti-skid tread tape and water collection channels on step surface provide safe entry and exit. Bolts or welds onto your RV frame. Rust-resistant black powder coat. Manually operated RV steps make it easy to get into and out of your motor home, simply pull steps out for use and position back in place for travel. Non-skid and slip-resistant step design, tread tape provides sure footing and water channels and drain holes help to keep rain from pooling. Grab handle eases use and keeps hands clear of moving parts. Black powder coated steel is sturdy and rust resistant. Easy bolt-on or weld-on installation, mounts to RV frame in same manner as original step. Step dimensions: 25-1/2" wide x 8-1/4" deep (1st step). 24-1/4" wide x 8-3/16" deep (2nd and 3rd step). Mounting base dimensions: 27-1/2" wide x 9-1/2" deep. Bolt hole centers: 26-3/8" wide x 7" deep. Drop/rise: 9-1/2" (1st to 2nd step). 8-3/4" (2nd to 3rd step). Weight capacity: 300 lbs.

MSRP: $244.95

Summary

Item Description

432690 1774401 ep replaced #341502 ref # LCI PN Prabha - 1774401 This 8-1/4" deep, triple pull-out RV step opens and closes with just 1 hand. Anti-skid tread tape and water collection channels on step surface provide safe entry and exit. Bolts or welds onto your RV frame. Rust-resistant black powder coat. Manually operated RV steps make it easy to get into and out of your motor home, simply pull steps out for use and position back in place for travel. Non-skid and slip-resistant step design, tread tape provides sure footing and water channels and drain holes help to keep rain from pooling. Grab handle eases use and keeps hands clear of moving parts. Black powder coated steel is sturdy and rust resistant. Easy bolt-on or weld-on installation, mounts to RV frame in same manner as original step. Step dimensions: 25-1/2" wide x 8-1/4" deep (1st step). 24-1/4" wide x 8-3/16" deep (2nd and 3rd step). Mounting base dimensions: 27-1/2" wide x 9-1/2" deep. Bolt hole centers: 26-3/8" wide x 7" deep. Drop/rise: 9-1/2" (1st to 2nd step). 8-3/4" (2nd to 3rd step). Weight capacity: 300 lbs.
